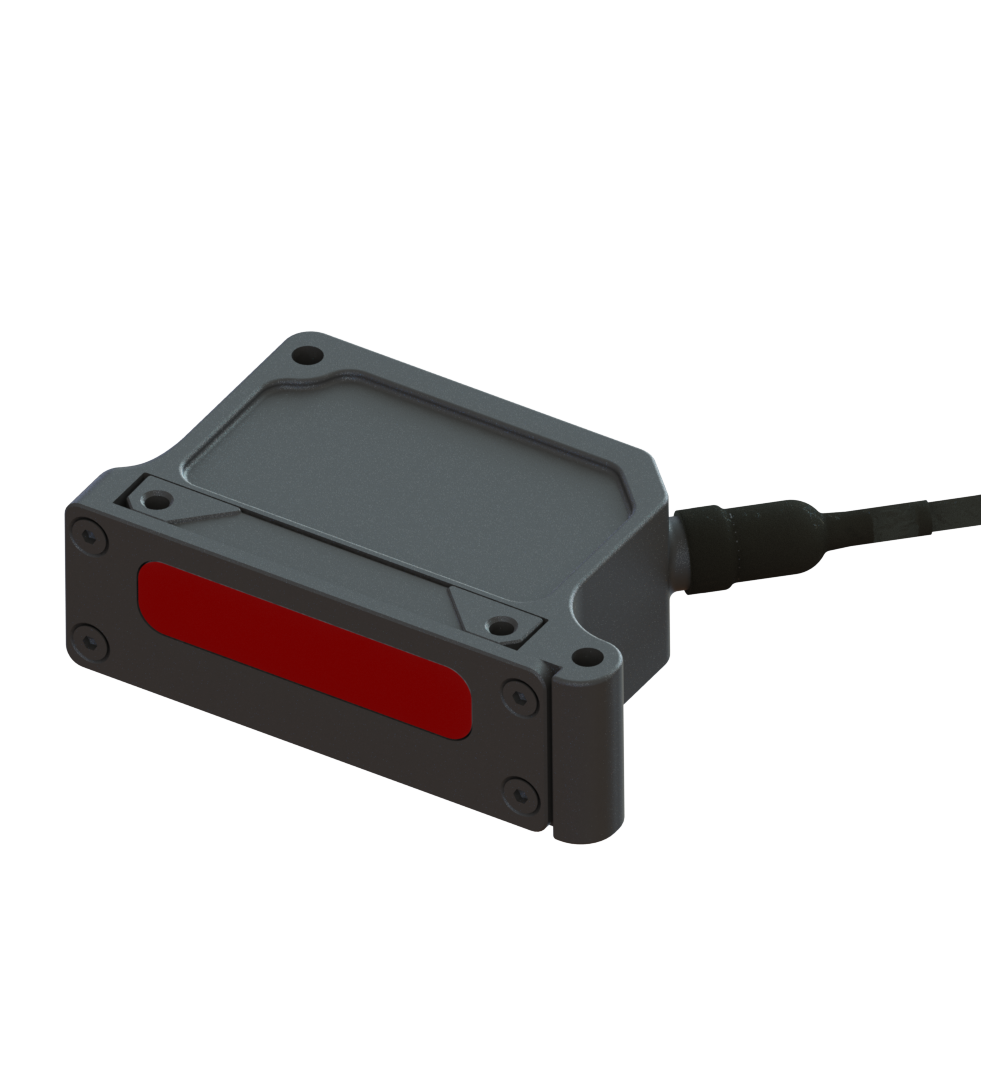

The RHL5 Laser Ride Height Sensor builds on the success of its predecessor, offering class leading accuracy and reliability in a small, rugged package, but now also including the ability to dynamically configure the sensor via its CAN interface.
RHL5 is truly a game changing ride height sensor in motorsport!
Never before have engineers been able to dynamically configure their ride height sensors to suit the conditions in which they are being used. No longer is there compromise in the setup for wet and dry conditions, or varying road surfaces. Now the ride height sensor can be configured in use, whenever it is desired.
Measurement rate, averaging filters and error handling can be adjusted on the fly, allowing the sensor configuration to be modified whilst fitted to the vehicle, ensuring the optimum signal is available under all running conditions.
The sensor incorporates a visible laser that is reflected off the track surface to a precision CCD detector which determines the height from the ground with a high degree of accuracy, whilst the on-board compensation ensures that different track colours and surfaces are correctly measured without error.
Supplied with either measurement ranges of 200mm or 500mm, the RHL5 is ideal for use on all types of vehicle. A user replaceable lens means that the part can be easily serviced in the field if required by the customer.
Measurement Range: 200mm or 500mm
Accuracy: ±0.1%/FS for 200mm and ±0.2%/FS for 500mm
Resolution: 0.02mm
Measurement Rate: 250 – 4000Hz (user configurable)
Output: 1-5V
Ambient Light: <10000Lx
Voltage Supply: 11-30V
Current Consumption: 50mA
Laser Type: 1mW, 670nm, Class 2 (DIN EN 60825-1 2009)
Weight: 52g (excluding cable)
